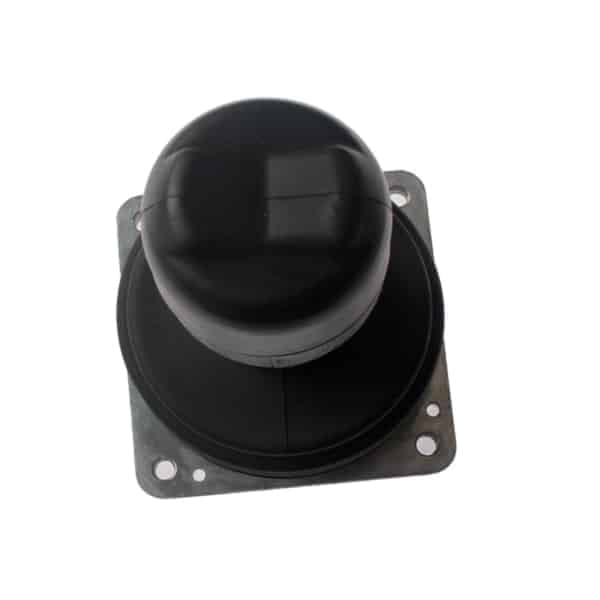

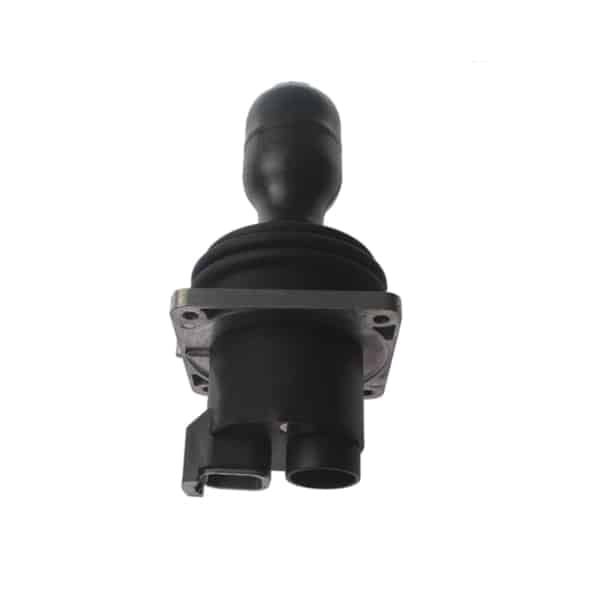

Genie 101005/101005GT Joystick Controller
Brand: Genie
PART NO: Genie 101005/101005GT
Price: $98-$150
Genie 101005/101005GT Joystick Controller Genie boom Lifts
Application: For Genie Z45-25JRT Z60-34RT Z60/34 Z80/60 Z45/25 Z45/25J Z135/70 Z51/30 J Z40/23N Z40/23N RJ Z45/25 IC Z45/25J IC S-100 S-105 S-120 S-125 S-45 S-40 S-45 S-65 S-80 S-85 SX-180 SX-150 Z-135/70 Z-33/18 Z-45/25 Z-40/23 Z-60/34 Z-60/37 Z-62/40 Z-80/60 ZX-135/70 Z-51/30J Z-45/25J and other Genie boom lifts
Genie Joystick 101005/101005GT used on Z80/60
With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.
84 ft Used Boom Lift, Genie Z80/60 (2003)
- Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
- Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
- Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
- Quiet diesel engine options for increased performance, grade ability and terrainability
| Specification | Value |
| Max Working Height | 84 ft | 25.77 m |
| Max Horizontal Reach | 60 ft | 18.29 m |
| Max Up and Over Clearance (riser extended) | 29 ft | 8.83 m |
| Below Ground Reach | 15 ft 10 in | 4.83 m |
| Platform Capacity | 500 lb | 227 kg |
Genie Joystick 101005/101005GT used on Z45/25JDC
The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
51 ft Used Boom Lift, Genie Z45/25JDC (2016)
- Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
- 30% gradeability and 3 mph (4.8 km/h) travel speed for excellent drive performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
- 160° hydraulic platform rotation and self-levelling platform for easy operation
- Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
| Specification | Value |
| Max Working Height | 51 ft 9 in | 15.94 m |
| Max Horizontal Reach | 22 ft 8 in | 6.91 m |
| Max Up and Over Clearance (riser extended) | 21 ft 3 in | 6.48 m |
| Platform Capacity | 500 lb | 227 kg |
Genie Joystick 101005/101005GT used on Z135/70
Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
141 ft Used Boom Lift, Genie Z135/70 (2010)
- Mini Genie X-Chassis® system extends and retracts to provide both stability on the job and a narrow profile for transport
- Telescoping Jib-Extend® jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
- 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
- Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
| Specification | Value |
| Max Working Height | 141 ft | 43.15 m |
| Max Horizontal Reach | 69 ft 9 in | 21.26 m |
| Max Up and Over Clearance (riser extended) | 75 ft 6 in | 23.01 m |
| Below Ground Reach | 19 ft 3 in | 5.87 m |
| Platform Capacity | 600 lb | 272 kg |
Genie Joystick 101005/101005GT used on S-80 J
Genie® S®-80 J telescopic boom offers the essential performance that operators need to get work done at height. It offers the right solution to get work done at height, including leading unrestricted platform capacity of 660 lb (300 kg), allowing for two occupants plus tools. For increased jobsite productivity, it is the first and only boom model in the 80 ft (26 m) working height category to offer a tracked option.
86 Ft Used Boom Lift, Genie S-80(2012)
- Suited for use in general construction, maintenance, inspection and painting tasks
- Leading unrestricted platform capacity of 660 lb (300 kg) with 6 ft (1.8 m) jib
- 80-ft (24.4 m) platform height and 55 ft (16.8 m) horizontal reach for access at the top of the envelope
- High-ground clearance helps clear rocks, curbs, trailer break-overs and other daily obstacles
- S-80 J TraX Overview
- Same features as above
- Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy manoeuvring
| Specification | Value |
| Max Working Height | 86 ft 5 in | 26.51 m |
| Max Horizontal Reach | 54 ft 9 in | 16.69 m |
| Platform Capacity | 660 lb | 300 kg |
| Machine Width and Length | S-80 J: 8 ft 2 in, 34 ft 3 in | S-80 TraX: 8 ft 4 in, 34 ft 3 in | S-80 J: 2.49 m, 10.44 m | S-80 TraX: 2.54 m, 10.44 m |
Genie Joystick 101005/101005GT used on S-85 XC
Genie® S®-85 XC™ telescopic boom lift is the redesigned Xtra Capacity™ version of the popular S-85 Genie telescopic boom lift. It will perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to its dual lift capacity.
91 ft Used Boom Lift, Genie S85 (2017)
- Full-time active oscillating axle and full-time positive traction for superior terrainability
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- 1.52 m (5 ft) robust articulating jib
- Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
- Automatic envelope control technology for a smooth operating envelope
- Zero-load field calibration and onboard diagnostics maximize serviceability
| Specification | Value |
| Max Working Height | 91 ft | 27.91 m |
| Max Horizontal Reach | 74 ft 6 in | 22.71 m |
| Below Ground Reach | 8 ft 8 in | 2.64 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 8 ft 2 in, 40 ft 7 in | 2.49 m, 12.37 m |
About Genie Joystick Controller
RECOO Engineering Technology (Wuxi) Co., Ltd is the leading supplier of all types of Joystick controllers for Genie scissor lifts and boom lifts. Please search the Genie controller part number(together with the Genie equipment model if possible), and contact us to get the latest joystick controller price and install manual for your Genie equipment.
Features
- Brand new joystick for all the Genie Lifts.
- We offer 18 month warranty for the Genie joystick.
- 24 hours online service, and lifetime after-sales support
- Free shipping by DHL, Fedex, UPS, etc.
- Controller installation video and user manual were available.
- Fast delivery, the goods will be ready for shipping in 3 days after the payment.
A joystick, or a controller, is an input device consisting of a stick that pivots on a base and reports its angle or direction to the device it is controlling. A joystick on Genie equipment has various switches to control the movements of the Genie equipment. Genie equipment is of high quality but like many other consumables, Genie joystick needs to be replaced after long years of usage. Replace a new Joystick would help the worker operate the equipment safely and easily.
