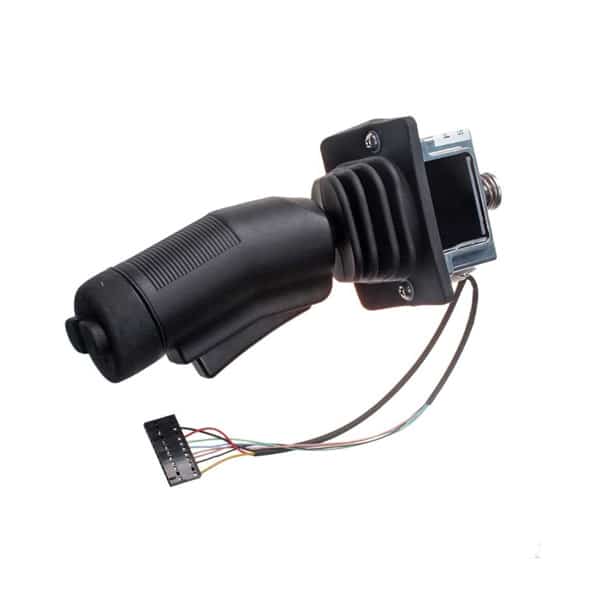

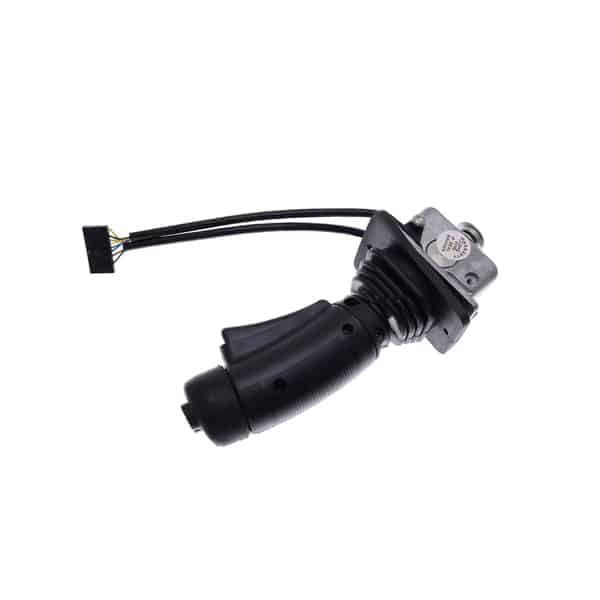

Genie 137634/137634GT Joystick Controller

Brand: Genie

PART NO: Genie 137634/137634GT

Price: $120-$188

Contact Us

Genie 137634/137634GT Joystick Controller Genie Slab Scissor Lifts

Application: For Genie GS1530/1532 GS1930/1932 GS2032/2632 GS3232/2046  GS2646/3246 GS2669DC/3369DC GS4069DC GS4047 and other Genie scissor lifts

Genie Joystick 137634/137634GT used on GS-2632

The quiet, electrically-powered Genie® GS™-2632 slab scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.

  • Genie® AC E-Drive configuration offers increased runtime, reduced maintenance costs and industry-leading performance
  • Easy to maneuver in tight spaces
  • Large platform workspace with 36 in (0.91 m)  roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
SpecificationValue
Max Working Height32 ft 1 in | 9.96 m
Platform Capacity500 lb | 227 kg
Machine Width2 ft 8 in | 0.81 m
Machine Length8 ft | 2.44 m
Weight4,729 lb | 2,145 kg

Genie Joystick 604064 used on GS-2646

The Genie® GS™-2646 E-Drive slab scissor lift is suitable for work indoors and outdoors on firm, level surfaces where space is limited. Its state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs where a significant amount of driving is required.

  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Front-wheel drive and zero inside turning radius for easy positioning
  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Large platform workspace with 36 in (0.91 m)  roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
Max Working Height32 ft 1 in | 9.96 m
Platform Capacity1,000 lb | 454 kg
Machine Width3 ft 10 in | 1.16 m
Machine Length8 ft | 2.44 m
Weight4,346 lb | 1,971 kg

Genie Joystick 604064 used on GS-3232

The Genie® GS™-3232 E-Drive slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited. The standard, state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs, especially when a significant amount of driving is required.

  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Easy to maneuver in tight spaces
  • Automatic leveling hydraulic outriggers level machine on slopes up to 5˚
  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Large platform workspace with 36 in (0.91 m)  roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
Max Working Height38 ft 1 in | 11.78 m
Platform Capacity500 lb | 227 kg
Machine Width2 ft 8 in | 0.81 m
Machine Length8 ft | 2.44 m
Weight5,367 lb | 2,434 kg

Genie Joystick 137634/137634GT used on GS-3369

The Genie® GS™-3369 RT rough terrain scissor lift is built for extra-rugged performance and can traverse through uneven rough terrain environments. Built to last, it’s ideal to increase operator productivity on demanding outdoor worksites.

  • 4 wheel drive with positive traction control for outstanding terrainability
  • Patented full-time oscillating axle automatically adjusts the axle position based on ground conditions
  • 35% gradeability for demanding outdoor worksites
  • Full height drive up to 11.96 m (38 ft 8 in) max. work height
  • Large platform workspace with 1.52 m (5 ft) slide-out extension deck
  • Swing out components trays for easy access
  • User-friendly Smart Link™ control and diagnostic system
SpecificationValue
Max Working Height38 ft 8 in | 11.96 m
Platform Capacity1,000 lb | 454 kg
Machine Width5 ft 9 in | 1.75 m
Machine Length10 ft 3 in | 3.12 m
Weight7,599 lb | 3,447 kg

Genie Joystick 137634/137634GT used on GS-4069

The only 40-ft full drive height unit in its class, the Genie® GS™-4069 RT rough terrain scissor lift features four-wheel drive and positive traction control, offering up to 40% gradeability when driving on slopes — making it ideal for use on demanding outdoor worksites.

  • Front active oscillating axle keeps all four wheels on the ground during operation
  • Proportional lift and drive
  • 800-lb (363 kg) capacity
  • Foam-filled, rough-terrain tires
SpecificationValue
Max Working Height46 ft 3 in | 14.30 m
Platform Capacity800 lb | 363 kg
Machine Width5 ft 9 in | 1.75 m
Machine Length10 ft 3 in | 3.12 m
Weight10,392 lb | 4,714 kg

About Genie Joystick Controller

RECOO Engineering Technology (Wuxi) Co., Ltd is the leading supplier of all types of Joystick controllers for Genie scissor lifts and boom lifts. Please search the Genie controller part number(together with the Genie equipment model if possible), and contact us to get the latest joystick controller price and install manual for your Genie equipment.

Features

  • Brand new joystick for all the Genie Lifts.
  • We offer 18 month warranty for the Genie joystick.
  • 24 hours online service, and lifetime after-sales support
  • Free shipping by DHL, Fedex, UPS, etc.
  • Controller installation video and user manual were available.
  • Fast delivery, the goods will be ready for shipping in 3 days after the payment.

A joystick, or a controller, is an input device consisting of a stick that pivots on a base and reports its angle or direction to the device it is controlling. A joystick on Genie equipment has various switches to control the movements of the Genie equipment. Genie equipment is of high quality but like many other consumables, Genie joystick needs to be replaced after long years of usage. Replace a new Joystick would help the worker operate the equipment safely and easily.
