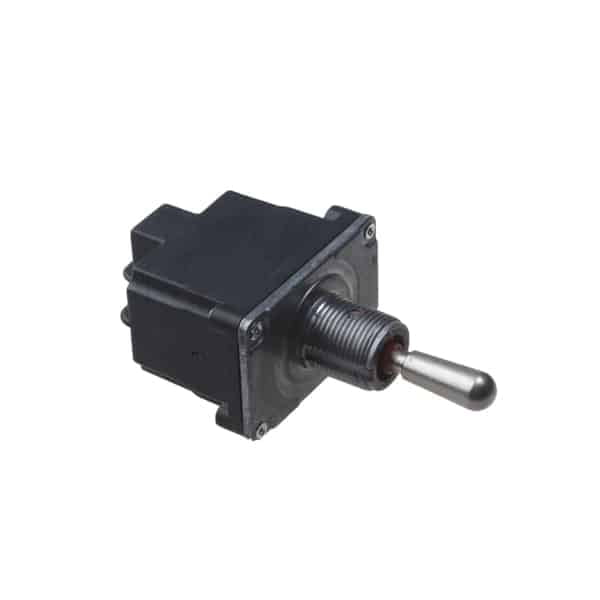

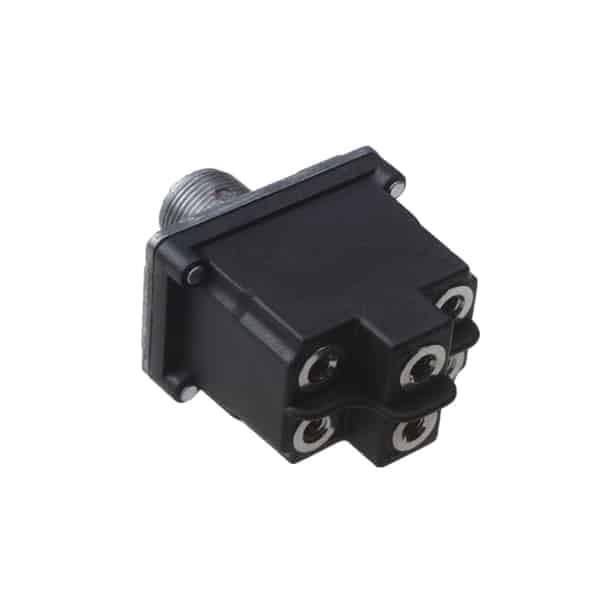

Genie 16397-16397-SGT Toggle switch
Brand: Genie
Part NO: 16397/16397S/16397-SGT
Price: $30-$70
SWITCH TOGGLE DPDT 3P MOM SHDR, EA switch used on various Genie model aerial work platforms scissor lifts and boom lifts
Genie 16397-16397GT Toggle switch Genie boom Lifts
Application: For Genie S-60, S-65, Z-45/22DC, Z-45/22 IC, Z-45/25IC, Z-34-22 IC and other Genie boom lifts
Genie 16397-16397GT Toggle switch used on S-60 J
Right-sized for completing work-at-height applications, such as general construction, maintenance, inspection and painting tasks, the new Genie® S®-60 J telescopic boom lift offers the essential performance that operators need to get work done at height. It offers the right solution to get work done at height, including leading unrestricted platform capacity of 660 lb (300 kg), allowing for two occupants plus tools. With a standard 6 ft (1.83 m) jib, which leads the class in length and capacity for the 60-ft (18.3 m) height class.
The Genie S-60 J is compact, low-weight design (16,650 lb / 7,550 kg) keeps ground pressure low when operators are working in more sensitive ground conditions. Additionally, rental companies can fit two units on one equipment truck, reducing shipping costs and increasing rROIC, thanks to the machine’s low weight and compact size.
66 Ft Used Boom Lift, Genie S-60(2016)
- Suited for use in general construction, maintenance, inspection and painting tasks
- Leading unrestricted platform capacity of 660 lb (300 kg) with 6-ft (1.8 m) jib
- Low 16,650 lb (7550 kg) operating weight in a compact chassis design
- Platform height of 60 ft 10 in (18.5 m) and horizontal reach of 40 ft 6 in (12.3 m)
- 1 ft 10 in (56.4 cm) of ground clearance to clear obstacles
| Specification | Value |
| Max Working Height | 66 ft 10 in | 20.50 m |
| Max Horizontal Reach | 40 ft 6 in | 12.30 m |
| Platform Capacity | 660 lb | 300 kg |
| Machine Width and Length | 8 ft 2 in – 31 ft 10 in | 2.49 m – 9.70 m |
Genie 16397-16397GT Toggle switch used on S-65 XC
Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 and S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
71 ft Used Boom Lift, Genie S65 (2017)
- Full-time active oscillating axle and full-time positive traction for superior terrainability
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- 1.52 m/5 ft robust articulating jib
- Dual lifting capacity of 300 kg/660 lb and 454 kg/1,000 lb to lift increased loads and up to 3 operators
- Automatic envelope control technology for a smooth operating envelope
- Zero-load field calibration and onboard diagnostics maximize serviceability
| Specification | Value |
| Max Working Height | 71 ft | 21.81 m |
| Max Horizontal Reach | 54 ft 2 in | 16.51 m |
| Below Ground Reach | 8 ft 8 in | 2.65 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | S-65 XC: 8 ft 2 in, 32 ft | S-65 TraX: 8 ft 6 in, 32 ft | S-65 XC: 2.49 m, 9.76 m | S-65 TraX: 2.58 m, 9.76 m |
Genie 16397-16397GT Toggle switch used on Z45-25JDC
The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
51 ft Used Boom Lift, Genie Z45/25JDC (2016)
- Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
- 30% gradeability and 3 mph (4.8 km/h) travel speed for excellent drive performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
- 160° hydraulic platform rotation and self-levelling platform for easy operation
- Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
| Specification | Value |
| Max Working Height | 51 ft 9 in | 15.94 m |
| Max Horizontal Reach | 22 ft 8 in | 6.91 m |
| Max Up and Over Clearance (riser extended) | 21 ft 3 in | 6.48 m |
| Platform Capacity | 500 lb | 227 kg |
About Genie Toggle switch
RECOO Engineering Technology (Wuxi) Co., Ltd is the leading supplier for all types of Toggle switch for Genie scissor lifts and boom lifts. Please search theGenie Toggle switch part number(together with the Genie equipment model if possible), and contact us to get the latest Toggle switch price and install manual for your Genie equipment.
Features
- Brand new Toggle switch for all the Genie Lifts.
- We offer 18 month warranty for the Genie Toggle switch.
- 24 hours online service, and lifetime after-sales support
- Free shipping by DHL, FedEx, UPS, etc.
- Toggle switch video and user manual available.
- Fast delivery, the goods will be ready for shipping in 3 days after the payment.
Toggle switches are designed for types of electronic devices and applications, such as lighting controls, electronic appliances and electronic circuits, where a simple on/off control is needed. Our toggle switches works perfectly on JLG, Genie, Skyjack, Snorkel, MEC and other brands lifts. They are reliable and durable, making them suitable for various uses. Toggle Switches have an operating lever that can be pushed up and down or left and right to switch an electrical circuit.
