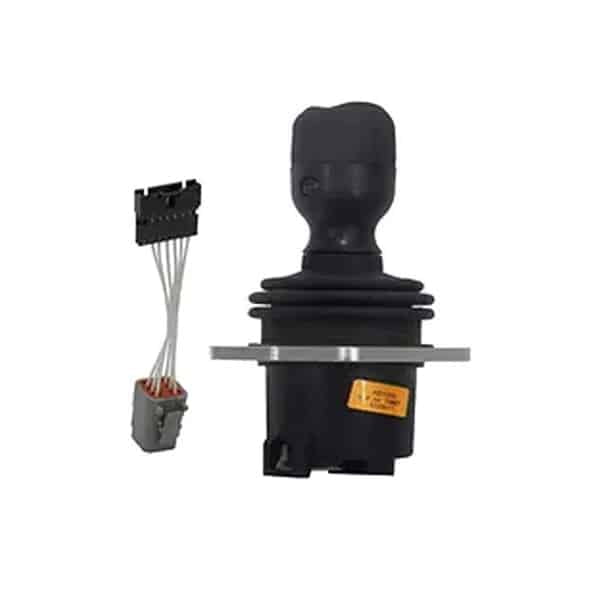

Genie 111416 Joystick Controller

Brand: Genie

PART NO: Genie 111416/111416GT

Price: $105-$175

Contact Us

Genie 111416/111416GT Joystick Controller Genie boom Lifts

Application: For Genie  S-100 S-120 S-40 S-80 S-85 and other Genie boom lifts

Genie Joystick 111416/111416GT used on S-40/S-45XC

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-40 XC™ and S-45 XC telescopic booms — offering a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted and  up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.

  • 660 lb (300 kg)/1,000 lb (454 kg) dual platform capacity
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Automatic envelope control enables boom to retract when it reaches its operating envelope
  • Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach work areas
  • Robust jib is capable of easily handling increased maximum capacity
  • CAN-bus control system with onboard diagnostics maximizes serviceability
  • Design focus on user interface and simplicity makes this machine easy-to-use
  • Can be equipped with the new Genie Lift Power™ generator system
  • Commonality in design and parts with other Genie booms
  • S-40 TraX and S-45 TraX Overview
  • Same features as above
  • Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
  • 30° steer angle for easy manoeuvring
SpecificationValue
Max Working HeightS-40 XC: 45 ft 6 in / S-45 XC: 50 ft 6 in | S-40 XC: 14.04 m / S-45 XC: 15.56 m
Max Horizontal ReachS-40 XC: 31 ft 1 in / S-45 XC: 36 ft 2 in | S-40 XC: 9.47 m / S-45 XC: 11.02 m
Below Ground ReachS-40 XC: 1 ft / S-45 XC: 4 ft 2 in | S-40 XC: 0.30 m / S-45 XC: 1.27 m
Platform Capacity660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
Machine Width and LengthS-40 XC: 8 ft 2 in, 26 ft 4 in / S-45 XC: 8 ft 2 in, 31 ft 1 in | S-40 XC: 2.49 m, 8.03 m / S-45 XC: 2.49 m, 9.47 m

Genie Joystick 111416/111416GT used on S-80J

Genie® S®-80 J telescopic boom offers the essential performance that operators need to get work done at height. It offers the right solution to get work done at height, including leading unrestricted platform capacity of 660 lb (300 kg), allowing for two occupants plus tools. For increased jobsite productivity, it is the first and only boom model in the 80 ft (26 m) working height category to offer a tracked option.

  • Suited for use in general construction, maintenance, inspection and painting tasks
  • Leading unrestricted platform capacity of 660 lb (300 kg) with 6 ft (1.8 m) jib
  • 80-ft (24.4 m) platform height and 55 ft (16.8 m) horizontal reach for access at the top of the envelope
  • High-ground clearance helps clear rocks, curbs, trailer break-overs and other daily obstacles
  • S-80 J TraX Overview
  • Same features as above
  • Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
  • 30° steer angle for easy manoeuvring
SpecificationValue
Max Working Height86 ft 5 in | 26.51 m
Max Horizontal Reach54 ft 9 in | 16.69 m
Platform Capacity660 lb | 300 kg
Machine Width and LengthS-80 J: 8 ft 2 in, 34 ft 3 in | S-80 TraX: 8 ft 4 in, 34 ft 3 in | S-80 J: 2.49 m, 10.44 m | S-80 TraX: 2.54 m, 10.44 m

Genie Joystick 111416/111416GT used on S-85 XC

Genie® S®-85 XC™ telescopic boom lift is the redesigned Xtra Capacity™ version of the popular S-85 Genie telescopic boom lift. It will perform a wider range of heavier lift tasks on construction and industrial job sites thanks to its dual lift capacity.

  • Full-time active oscillating axle and full-time positive traction for superior terrainability
  • Chassis tilt sensor technology  maximizes access to hard-to-reach work areas
  • 1.52 m (5 ft) robust articulating jib
  • Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
  • Automatic envelope control technology for a smooth operating envelope
  • Zero-load field calibration and onboard diagnostics maximize serviceability
SpecificationValue
Max Working Height91 ft | 27.91 m
Max Horizontal Reach74 ft 6 in | 22.71 m
Below Ground Reach8 ft 8 in | 2.64 m
Platform Capacity660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
Machine Width and Length8 ft 2 in, 40 ft 7 in | 2.49 m, 12.37 m

About Genie Joystick Controller

RECOO Engineering Technology (Wuxi) Co., Ltd is the leading supplier of all types of Joystick controllers for Genie scissor lifts and boom lifts. Please search the Genie controller part number(together with the Genie equipment model if possible), and contact us to get the latest joystick controller price and install manual for your Genie equipment.

Features

  • Brand new joystick for all the Genie Lifts.
  • We offer 18 month warranty for the Genie joystick.
  • 24 hours online service, and lifetime after-sales support
  • Free shipping by DHL, Fedex, UPS, etc.
  • Controller installation video and user manual were available.
  • Fast delivery, the goods will be ready for shipping in 3 days after the payment.

A joystick, or a controller, is an input device consisting of a stick that pivots on a base and reports its angle or direction to the device it is controlling. A joystick on Genie equipment has various switches to control the movements of the Genie equipment. Genie equipment is of high quality but like many other consumables, Genie joystick needs to be replaced after long years of usage. Replace a new Joystick would help the worker operate the equipment safely and easily.
